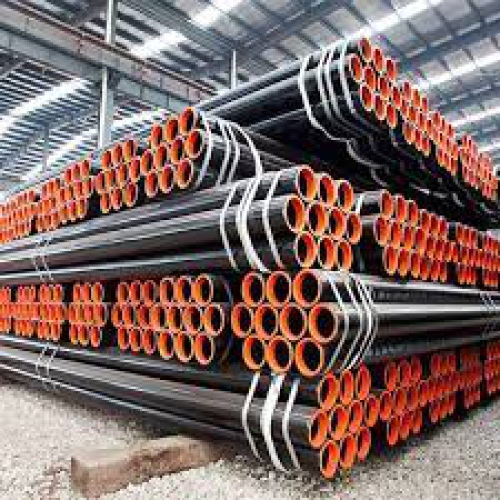

LINEPIPES FOR PIPELINES

Linepipes and associated products for projects in the energy sectors are the core of our business. BROWNFIELD supply linepipe packages both for Onshore as well as Offshore applications.

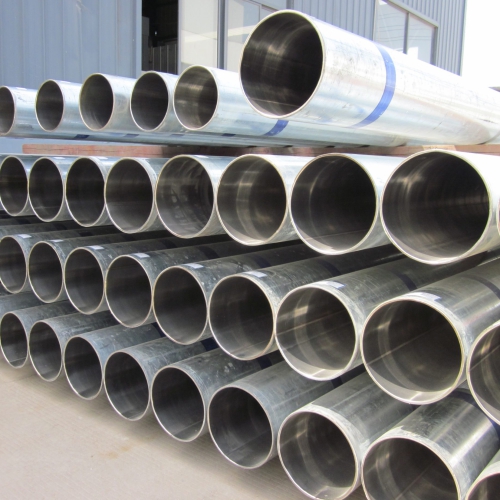

Seamless linepipes for the oil & gas industry can be supplied from 1/2” - 24”, wall thickness up to 90 mm.

HFI/ERW linepipes can be supplied from 4” - 24”, wall thicknesses up to 25.4 mm.

LSAW linepipes from 16”to 100”with wall thicknesses up to 90 mm.

HSAW (spiral) linepipes from 16” - 120” and wall thicknesses op to 25.4 mm.

Linepipes are supplied in material grades to API 5L, ASTM, EN 10208-2, EN 10217-3 or EN 10216-3. Typical material grades range from “B” to “X80”

ALL THE TRIMMINGS

ALL THE TRIMMINGS

Value added items for linepipes such as:

■ Controlled bore

■ Fixed lengths (in particular for Offshore applications)

■ Complex, multi-angle bevels

■ End protection (recessed plastic end caps suitable for hook loading and steel ring bevel protectors to ensure that the pipes arrive at site undamaged)

■ Container stuffing

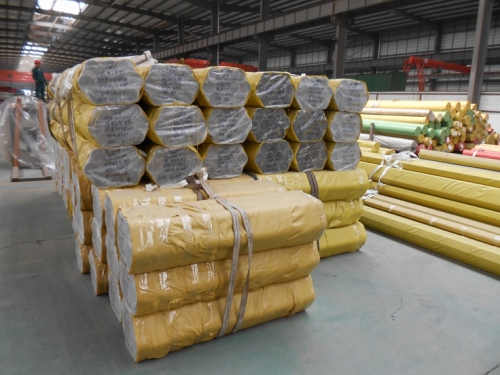

■ All kinds of packing (skids, crates, and wooden boxes)

ASSOCIATED PRODUCTS TO COMPLEMENT OUR SUPPLIES OF LINEPIPES ARE:

■ Induction bends

■ External corrosion coating systems (polyethylene, polupropylene, polyurethane, fusion bonded epoxy and dual layer fusion bonded epoxy)

In particular, we specialise in the supply of materials required for sour service.

PIPE PACKAGES

PACKAGES

When new industrial plants or power stations are constructed or when they must be expanded or have maintenance. Engineering, contracting companies or end-users are in need of different types of materials. The MTO include pipes, fittings, plates, bolts, valves and many other components in various material grades in large quantities for manufacturers production or small quantities which only stockists can supply.

REFERENCES

“Prominent supplier of Interpipe Ukraine

BKL Thailand

Bothwell Taiwan”

Purchasing all these items from the very specialized suppliers, manufacturers means splitting the MTO to many separate orders and handling can become a major management problem. Instead of concentrating on getting the job finished, time is lost and manpower is tied up with expediting and coordinating many different orders.

Our long experience and knowledge of MRO materials and the market enable us to supply complete packages for this type of requirement against competitive prices and ensuring deadlines are met. Our wide range of products covers most of our customer’s needs.

In this field, BROWNFIELD has successfully supplied packages of complex materials ranging from carbon steel through to special boiler grades and stainless steels for some of the most prestigious new project worldwide such as new refineries, power plants or offshore platforms, etc.

Having just one supplier in BROWNFIELD for complex material lists means saving time and money.

PROJECT MANAGEMENT

PROJECT MANAGEMENT & MRO

For complex and extensive projects, we compose project dedicated teams. If desired, they can work at the customer’s location. These teams offer the following services:

■ Procurement of materials

■ Customer dedicated stocks, if desired on the customers’s site

■ Control of logistics

■ Material tests and inspections

■ Composition of data books MRO (Maintenance, Repair and Operations)

Our expert MRO teams help you control the quality, progress, and budget of your maintenance or turnaround.

OUR MRO SERVICES INCLUDE

■ 24/7 availability for emergencies

■ Short delivery times

■ Mobile service centres stocked by us, on your site

■ Service level agreements

■ Complete product package

■ Logistical and administrative solutions

SEAMLESS CARBON STEEL

BROWNFIELD delivers a wide range of pipes both from stock as production. Our stock consists of both seamless and welded pipes in diameters ranging from 1” to 56”. All our products primarily come from European or Japanese manufacturers, including Norsok M650 approvals, who are highly acclaimed in the international Up- and Downstream markets, and able to comply to the most stringent testing requirements.

BROWNFIELD supplies seamless and welded pipes in the following material grades (API, ASTM and ASME):

CARBON STEEL

■ A53 Gr B / A106 Gr B / API 5L Gr B to Gr X 70 LOW TEMPERATURE PIPES

■ A333 Gr 3 and Gr 6 STAINLESS STEEL & SPECIAL STAINLESS STEEL

■ A312 / SA 312 TP 304/304L, 316/316L, 310, 317, 321, 347, 410, 904, H Grades

■ A790 UNS S31803 / S32205 – Duplex 2205

■ A790 UNS S32750 / S32760 – Super Duplex 2507 ALLOYS STEEL

■ A335 Gr. P5 / P9 / P11 / P 22 / P91 & P92

SPECIAL ALLOYS

- Nickel Alloys

■ Nickel 200/201 – B161 – UNS N02200/N02201

■ Alloy 400 – B165 – UNS N04400 – Monel® 400

■ Alloy 600 – B167- UNS N06600 – Inconel® 600

■ Alloy 625 – B705 – UNS N06625 – Inconel® 625

■ Alloy 800H/800HT – B407 – UNS N08810/N08811 – Incoloy® 800H/HT

■ Alloy 825 – B423 – UNS N08825 – Incoloy® 825

■ Alloy 276 – B622 – UNS N10276 – Hastelloy® C-276

- Titanium Alloys

■ B861 Gr 1 / 2 / 5 / 7

Welded Pipes

CARBON STEEL

■ API 5L Gr B to Gr X80

LOW TEMPERATURE PIPES

■ A671 EFW LSAW for atmospheric & Low Temp.

■ A672 EFW LSAW for High Pressure service at moderate temperature, in all Grades.

STAINLESS STEEL & SPECIAL STAINLESS STEEL

■ A358 TP 304/304L, 316/316L, 310, 317, 321, 347, 410, 904, H Grades

■ A928 UNS S31803 – Duplex 2205

■ A928 UNS S32750 / S32760 – Super Duplex 2507

ALLOYS STEEL

■ A691 all Grades

SPECIAL ALLOYS

- Nickel Alloys

■ Nickel 200/201 – B725 – UNS N02200/N02201

■ Alloy 400 – B725 – UNS N04400 – Monel® 400

■ Alloy 600 – B517- UNS N06600 – Inconel® 600

■ Alloy 625 – B705 – UNS N06625 – Inconel® 625

■ Alloy 800H/800HT – B514 – UNS N08810/N08811 – Incoloy® 800H/HT

■ Alloy 825 – B705 – UNS N08825 – Incoloy® 825

■ Alloy 276 – B619 – UNS N10276 – Hastelloy® C-276

- Titanium Alloys

■ B862 Gr 1 / 2 / 5 / 7
