Structural Steel

Structural Steel

All these products will be available in a variety of grades to suit any projects needs. In addition to provide maximum project flexibility, the standards can be modified to meet specific technical requirements.

STRUCTURAL STEEL OFFERING INCLUDES:

■ Shipbuilding steels.

■ Galvanizing steelsSteels with improved cold forming properties

■ Age- hardening steels.

■ Nickel alloy steels for low – temperature pressure vessels.

■ Hot Rolled Plates of thicknesses from 5 to 200mm in all types of heat treatment (As Rolled / TMCP / Normalised / Q&T)

■ Tubulars both seamless in diameter from 1’’ to 24’’ and welded from 14’’ and above.

■ Full range of Section Beams to both imperial & metric sizes up to 914/ W36 and welded girders above.

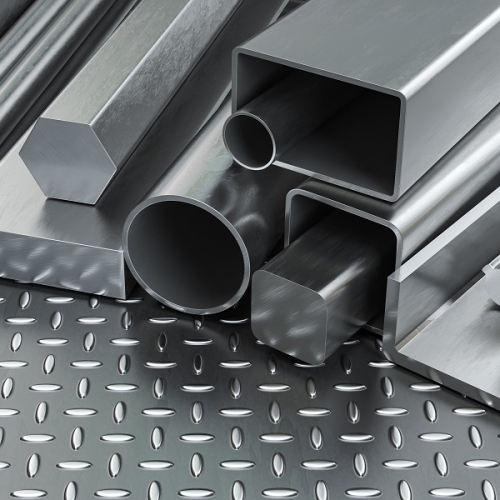

■ Hollow sections / equal, unequal and inverted Angles / flat, round and square bars are also available in a variety of sizes to meet any project requirements.

HOT ROLLED PLATES

Specifications

■ API 2H/2W Gr 50 and Gr 60

■ EN 10225 Gr S355 G8 + M/N to S460 G2 +Q/M

■ EN 10025 Gr S235 JR to S355 K2 G3/G4

■ EN 0113 Gr S275 N/M to S460 NL/ML

■ EN 10028 Gr P275 NL/ML to P460 NL/ML

■ ASTM A36 / A572 Gr 50 / A283 Gr C / JIS Gr SS400

■ A131 Gr A to EH36

■ ABS / LRS / GL / DNV Gr A to EH36 / E36

■ EN 10225-6 Gr S690 QL, S890 QL and S960 QL

■ Wear Resistant Steel in HB 300 to HB 500 as well as EN 10155 Gr S355 J0W and S355 J2W

SECTION BEAMS, COLUMS AND CHANNELS

Specifications

■ EN 10225 Gr S355 G4 +M to S355 G12 +M

■ EN 10025 Gr S275 JR to S355 K2 G3/G4

■ ASTM A36 / A572 Gr 50 / A992 Gr 50 / JIS Gr SS400

HOLLOW SECTIONS

Specifications

■ EEN 10210 Gr S235 JRH to S355 J2H

■ EN 10219 Gr S235 JRH to S355 J2H
